UVtek Technology

UVtek SYSTEMS have one thing in common
low energy consume, excellent curing and practical use!


LED UV DRYING

UVtek began researching and developing LED UV systems since 2006, to demand customer needs in the new generation of UV LED CURING Technology which has plenty advantages to offer; long lamp life, excellent printing quality and instant further process.

General Features

Instant ON / OFF
Specific Optic + Reflector set for Interdeck or end of press position
Pure UV (NO heat generating IR)
High efficiency >40%
No Mercury, No Ozone
No moving parts
Stepless power control
Quick lamp replacement
Instant Curing of inks and varnishes
Long lamp life
Compact design
User friendly Touch screen operating

Benefits

  • Addition: 4%
  • Furnishes the printing plate with a thin, stable water-film
  • Stabilises the pH-value between 5.0 and 5.3
  • Prevents roller stripping
  • Very fast printing plate runoff and good plate protection
  • Meets the requirements concerning corrosion protection

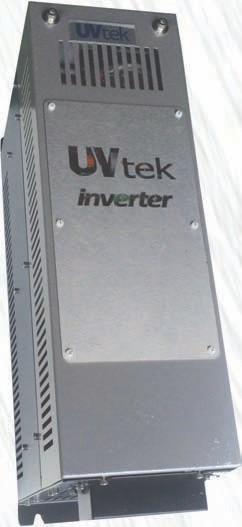

INVERTER TECHNOLOGY

NEW GENERATION

ELECTRONIC POWER SUPPLY FOR UV LAMP & ELECTRONIC BALLAST INVERTER TECHNOLOGY



UVtek new generation electronic power supplies are specifically designed for UV lamps and UV systems. Lamp start up and operating currents are controlled by DSP microprocessor. In this way long lamp life is ensured. Transition to a new power value currents with lamp start and inrush currents  are constantly controlled and ensured to operate without exeeding the allowed maximum current value. Lamp situation is constantly monitored in all operating conditions. So that, there is a balance between the lamp output power with the reference value given. This balance conditions won’t be effected of mains voltage cooling conditions or changes that may occur depending on the operating environment temperature. This means stability for UV curing.

Normally, use the mains supply is 50 – 60 Hz sine wave throughout the World. The UV lamps with light-emitting discharge tube technique, emit light with pulses in 100 – 120 Hz. Electronic ballasts are produced with an inverter technology in which 20 kHz square wave is used. Accordingly, the light frequency will be 40 kHz.

Another advantage of our new generation electronic ballast is three-phase operation. Since the system load is distributed to three phase instead of two phase, current drawn is reduced. In this way, energy losses that occur in the line will be reduced.  Also our electronic ballast’s power factor is higher than magnetic transformers or shock transformers and thus reactive current also decreases. All this, means less electricity bills.

Thanks to electronik ballast system which is designed and used by UVtek, energy consumption is reduced to optimum level, paralelly it is also reduced demand of exhaust air and cooling power. Each unit saving in energy, will have positive impact on carbon emission in the same proportion in nature.



MERCURY UV CURING

UV Drying lamps for the Graphic Industry

Since 1996 till today we have never changed our UV LAMP supplier PRIMARC a leading global manufacturer since 1970 with our own designed intelligent electronic ballast system you can safe up to 43% power consumption.



General Features

Instant ON / OFF
Specific Optic + Reflector set for Interdeck or end of press position
Pure UV (NO heat generating IR)
High efficiency >40%
No Mercury, No Ozone
No moving parts
Stepless power control
Quick lamp replacement
Instant Curing of inks and varnishes
Long lamp life
Compact design
User-friendly Touch screen operating

Benefits

  • Addition: 4%
  • Furnishes the printing plate with a thin, stable water-film
  • Stabilises the pH-value between 5.0 and 5.3
  • Prevents roller stripping
  • Very fast printing plate runoff and good plate protection
  • Meets the requirements concerning corrosion protection

These are our references ,how about you ?
