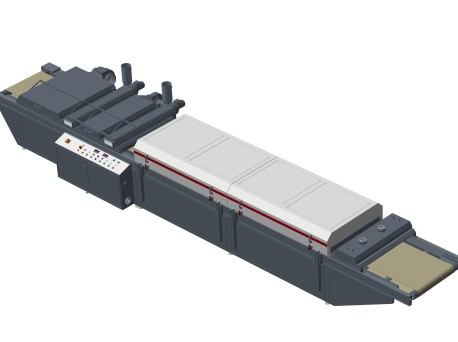

JC Model Combination dryers has been designed as compatible with screen printing machines in different dimensions and brands as be able to be fixed to output of printing machines
General Features
UV lamp unit is cooled by a high performance air-cooler has special air flow channels.
Owing to have a special designed aluminum reflector, it has infrared (heat) absorption and efficiency of UV energy at maximum.
50-200 cm wide for printing and curing.
Fast and easy replacing of UV lamp.
Electrical heating elements and closed hot air circulation on each module for homogeneity and energy save.
PID control for fine temperature adjustment.
Step control or stepless liner (optional) power unit.
Frequency control unit by Manuel or automatic conveyor speed adjustment by connected to printing machine.
In case of stopping of line, the lamp unit rises up pneumatically to protect the surface and teflon conveyor belt from heat.
Separate cooling fan for each lamps and vacuum fan are for base cooling.
Electrical control panel is well connected with machine to form a compact design and easy maintenance.
Isolated machine body for energy save and operator safetyIsolated machine body for energy save and operator safety.
